filter_1Enter the dimensions of your uPVC window
filter_2Select the uPVC window system of your choice
$238
Technical Specifications
for a 123 cm x 148 cm reference window
Production time
5 – 6 weeks
Glass number
3
Seals
3
Maximum glazing
52 mm
Depth
82 mm
Warranty
30 months
The height of folding the frame with the wing
123 mm
Width of the angular connector
87 mm
Possibility of sinking the threshold
no
Number of chambers
6
Uw
0.74 W/m²·K
Ug
0.5 W/m²·K
Uf
0.92 W/m²·K

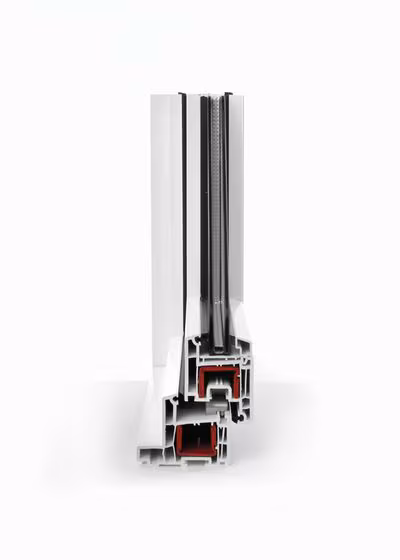

The bluEvolution profile with an installation depth of 82 mm. It combines excellent energy savings and innovative sealing technology at the highest level, perfectly suited as a passive component for buildings. Thanks to the use of special thermally optimized frame and sash designs, optimal savings in heating and energy costs can be achieved in combination with triple glazing. And this translates into a benefit for your wallet!
The product is cheaper than its wider brother 92 mm. You will sell it at a higher margin and you and your company will earn more.
To whom we recommend Salamander bluEvolution 82 PVC Windows?
The product Salamander bluEvolution 82 is especially recommended to all those who care about airtightness.
Like the 92 mm model, bluEvolution 82 is an energy-saving profile, but at a slightly lower price.
Therefore, if you want to sell energy-efficient and airtight windows at a higher margin, you should be interested in it. When you install windows in passive houses Salamander bluEvolution 82 will also be a great choice.
Elika is trusted window solution that has been fully optimised to match all your project needs. This versatile aluminium system offers a complete range of variants and options, at a very competitive price-performance ratio.
$320
Features
- Multiple locking points and dual weather seals for optimal air and water tightness.
- Up to 1 3/8 in glazing capability for increased energy efficiency and acoustical performance.
- Large chambers for accommodation of reinforcements required for large openings and heavy commercial applications.
- High-definition finish for weather and stain resistance and ease of maintenance.
- Compatible with REHAU Hardware for superior longevity.
Performance
| Test Results | Description |
| NAFS (PG) | up to AW-PG100 |
| ASTM + TAS | Impact Resistant DP-65 (HVHZ) |
| ASTM E90 Acoustical (STC) | up to 43 dB |
| U-value (*based on simulation) |
down to 0.17* |
A very unique product for large openings in both residential and commercial markets.

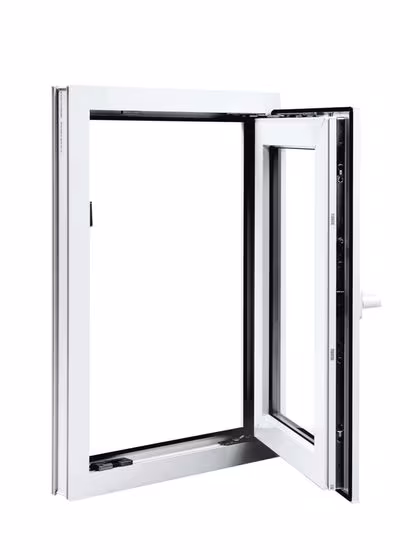

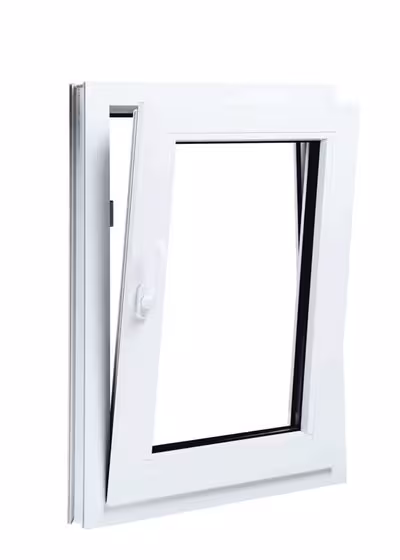

The tilt-turn is the dominant window style in Europe, now gaining popularity among discerning architects, designers and homeowners in North America. The System 4500 is a versatile design featuring three windows in one: An inward opening casement in the turn position, a secure top-venting hopper in the tilt position and a tightly sealed picture window when closed.
Matching doors in a variety of configurations are available.
The system is available in white, beige or clay and can be laminated with solid color or wood-grain foils.

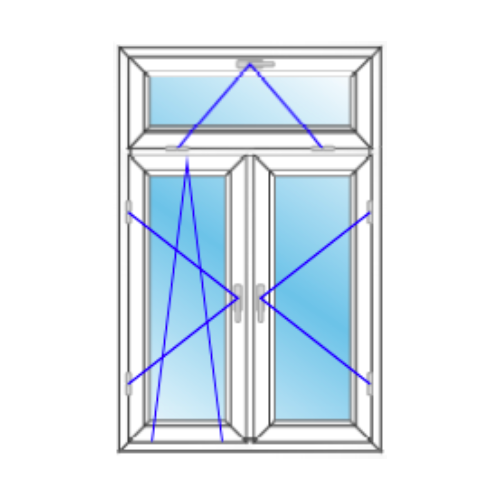

filter_2Choose the construction available for the given dimensions
