filter_1Select the Vinyl window system of your choice
$153
Features
- Multi-chambered frame design with staggered weep system channels for efficient water drainage.
- Pocket sill configuration for structural integrity.
- T-mullion profile for multiple-lite configurations within a single perimeter frame.
- High-definition finish for weather and stain resistance and ease of maintenance.
Performance
| Test Results | Description |
| Structural | up to LC-PG40 |
| Acoustical | up to STC 32; OITC 27 |
| Thermal *based on simulation |
down to 0.24* |
A window that combines the simplicity of a side-load design with high performance, suitable for both new construction and replacement projects.
Our System 190 Hung-Slider system offers different frame options for accessory grooves, integral nailing and/or stucco fin.
With the System 190 design, single hung, single slider and fixed configurations are possible. The system is available in white, beige or clay.
$300
Features
- Interior glazing allows for easy installation (glass can also be replaced from inside)
- A flat bottom frame makes it easy to install in stucco or masonry openings
- Chambered frame provides positive water drainage
Performance
| Test Results | Description |
| NAFS (PG) | up to CW-PG70 |
| Acoustical (STC) | up to STC 39; OITC 32 |
| ASTM + TAS (*Single Hung, Fixed) |
Impact Resistant DP-60 (HVHZ)* |
| U-value (**based on simulation) |
down to 0.17** |
The REHAU System 700 Hung-Slider Window design is one of the most comprehensive hung-slider replacement window designs on the market.
Providing five styles with a variety of design and performance options, this versatile design is an excellent choice for upscale residential and light-commercial applications.
With the System 700 design, single hung, double hung, single slider, double slider and fixed configurations are possible. Available in white, beige or clay and can be laminated with solid color or wood-grain foils.
filter_2Choose the dimensions and colors of your Vinyl window
Rehau 190 hung-slider Low-E Argan Glass with Nail Fin, Screen Incl
$153 – $653

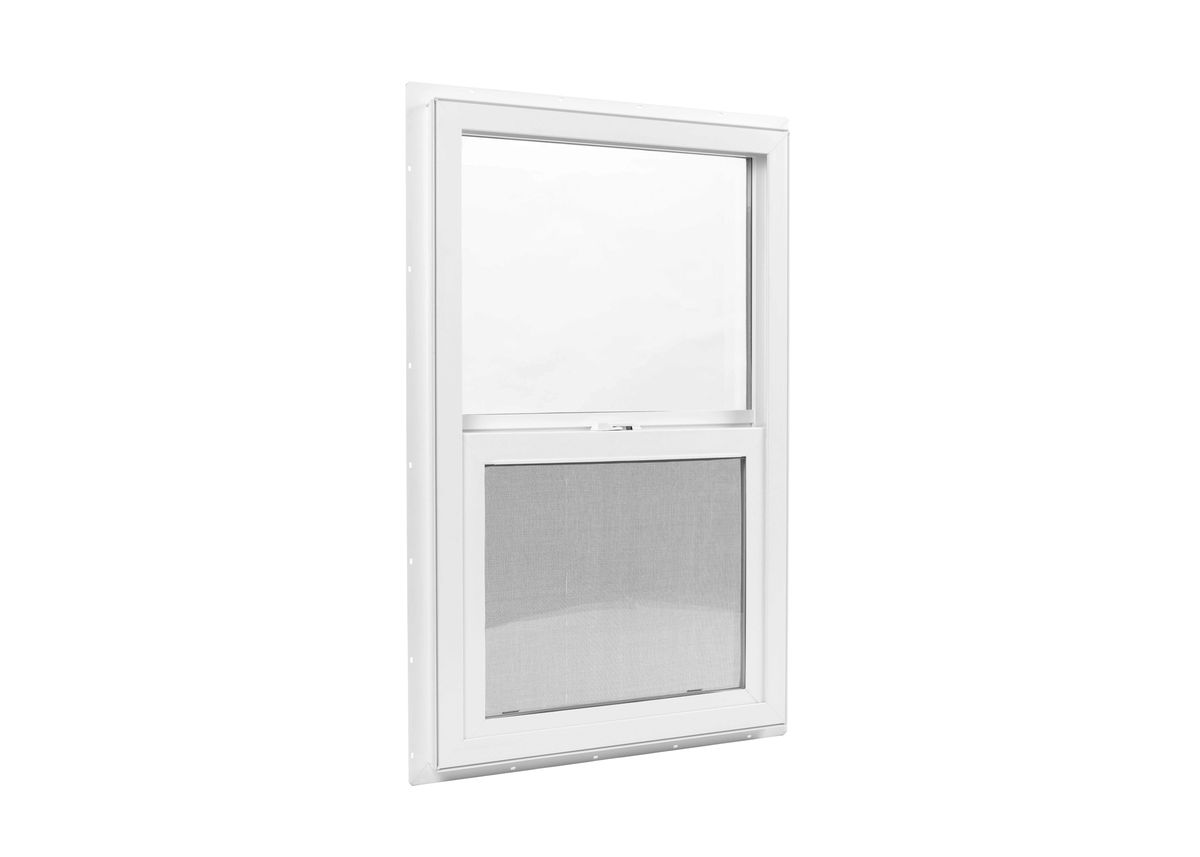

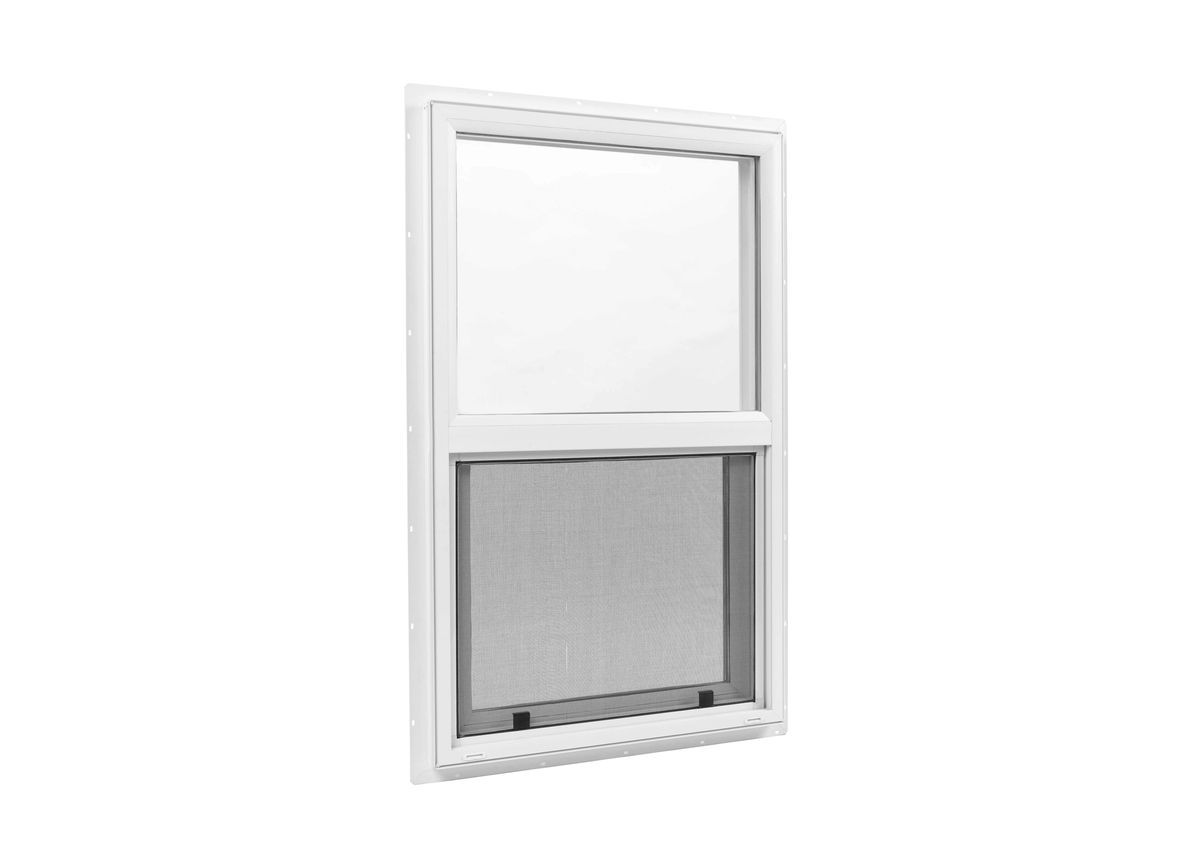

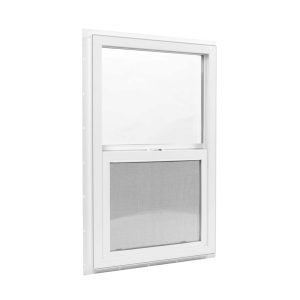

Select series white vinyl Single Hung Window with Grilles and HPSC Glass, Screen included
Description
Select series white vinyl Single Hung Window with Grilles and HPSC Glass, Screen included
Additional information
| Orientation | Single Hung, Slider |
|---|---|
| Frame colors | |
| Sizes | 23.5 x 35.5, 23.5 x 47.5, 23.5 x 59.5, 23.5 x 71.5, 27.375 x 51.25, 29.5 x 59.5, 29.5 x 71.5, 31.5 x 51.5, 31.5 x 59.5, 35.5 x 35.5, 35.5 x 47.5, 35.5 x 51.5, 35.5 x 59.5, 35.5 x 71.5 |
| Glass type | Double Glass 4+8+4 mm, Double Glass 6+12+6 mm (+10%), Triple Glass 4+6+4+6+4 mm (+15%) |
| Tempered | No, Yes (+5%) |
| Grilles | Without grilles, 4 panes (+8%), 6 panes (+10%) |
Related products
-
Rehau 700 hung-slider Low-E Argan Glass with Nail Fin, Screen Incl
$300 – $881 Add to quote This product has multiple variants. The options may be chosen on the product page -
System Rehau 700 hung-slider windows
$300 – $881 Add to quote This product has multiple variants. The options may be chosen on the product page
Rehau 700 hung-slider Low-E Argan Glass with Nail Fin, Screen Incl
$300 – $881
Select series white vinyl Single Hung Window with Grilles and HPSC Glass, Screen included
Description
Select series white vinyl Single Hung Window with Grilles and HPSC Glass, Screen included
Additional information
| Orientation | Single Hung, Double Hung, Slider |
|---|---|
| Frame colors | |
| Sizes | 23.5 x 35.5, 23.5 x 47.5, 23.5 x 59.5, 23.5 x 71.5, 27.375 x 51.25, 29.5 x 59.5, 29.5 x 71.5, 31.5 x 51.5, 31.5 x 59.5, 35.5 x 35.5, 35.5 x 47.5, 35.5 x 51.5, 35.5 x 59.5, 35.5 x 71.5 |
| Glass type | Double Glass 4+8+4 mm, Double Glass 6+12+6 mm (+10%), Triple Glass 4+6+4+6+4 mm (+15%) |
| Tempered | No, Yes (+5%) |
| Grilles | Without grilles, 4 panes (+8%), 6 panes (+10%) |
Related products
-
Rehau 190 hung-slider Low-E Argan Glass with Nail Fin, Screen Incl
$153 – $653 Add to quote This product has multiple variants. The options may be chosen on the product page -
System Rehau 700 hung-slider windows
$300 – $881 Add to quote This product has multiple variants. The options may be chosen on the product page
